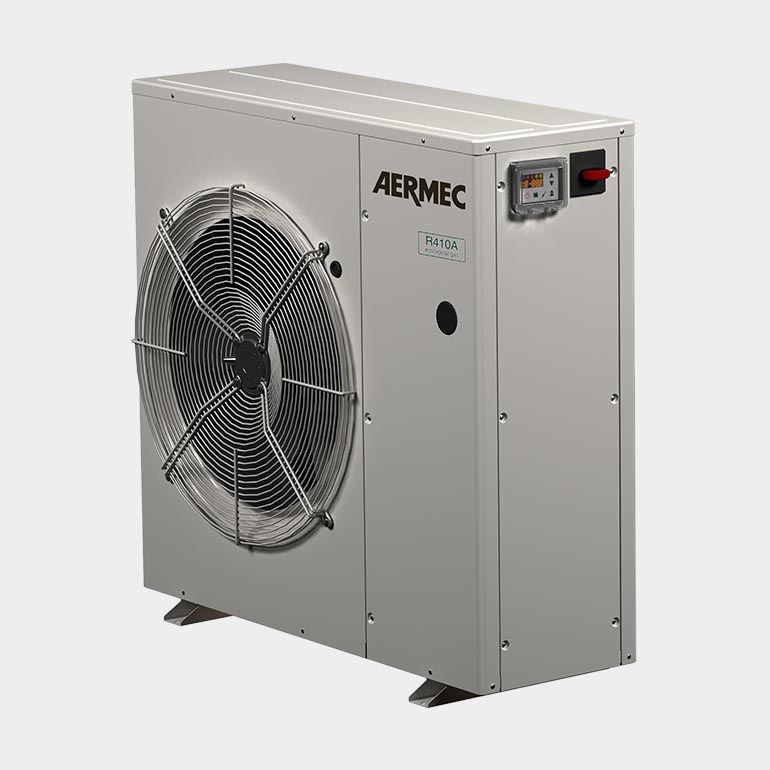

ANL 021 / 203

Reversible air/water heat pump for air conditioning systems with cold water production for cooling rooms and hot water for heating and/or domestic hot water services. Outdoor Installation.

  • Cooling capacity: 5.70 ÷ 49.10 kW
  • Heating capacity: 6.20 ÷ 43.30 kW
  • Outdoor installation
  • Cooling / Heating / High temperature water production even for eventual DHW production
  • Can be combined with SAF heat storage tanks for the production of domestic hot water
  • Plug & Play installation
  • Low noise
  • R410A refrigerant
  • Cooling and heating
  • Scroll compressor
  • Axial fan
  • Plate exchanger
  • Heat recovery
  • Pump kit
  • Water tank
  • Network operation
  • Compatible with ModBus protocol
  • Compatible with VMF system (Variable Multi Flow)
  • For two pipes plants

Reversible air/water heat pump Inverter for air conditioning systems with cold water production for cooling rooms and hot water for heating and/or domestic hot water services, suitable for connection with small or medium users. The unit is equipped with scroll compressor, axial flow fan, and plate type exchanger. The Plug&Play unit can be combined with low-temperature emission systems such as underfloor heating or fan coils. To facilitate the final installation, versions with the main hydraulic components are also available as standard.
